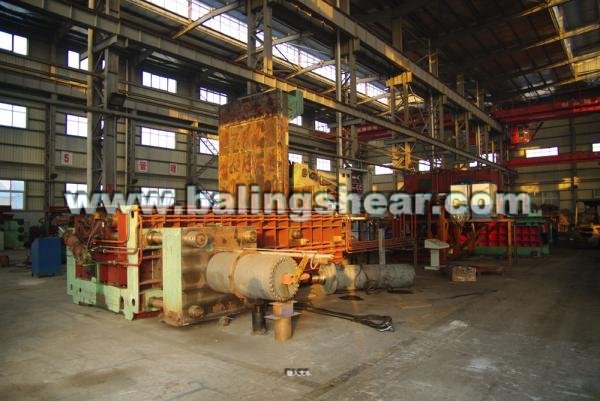

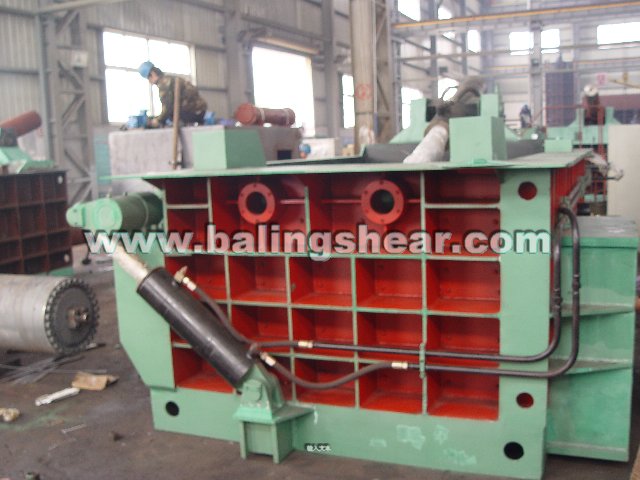

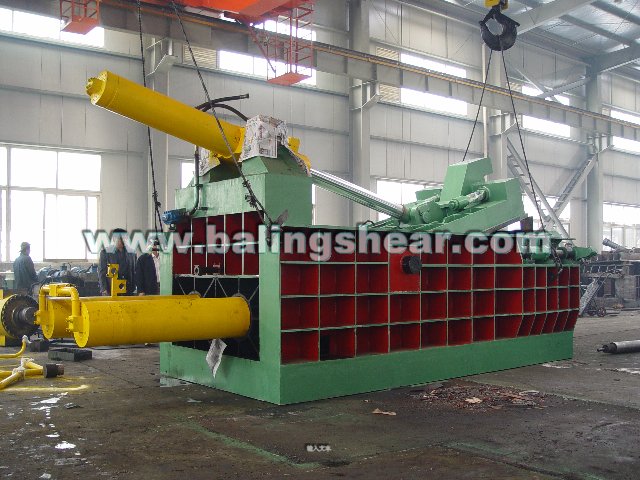

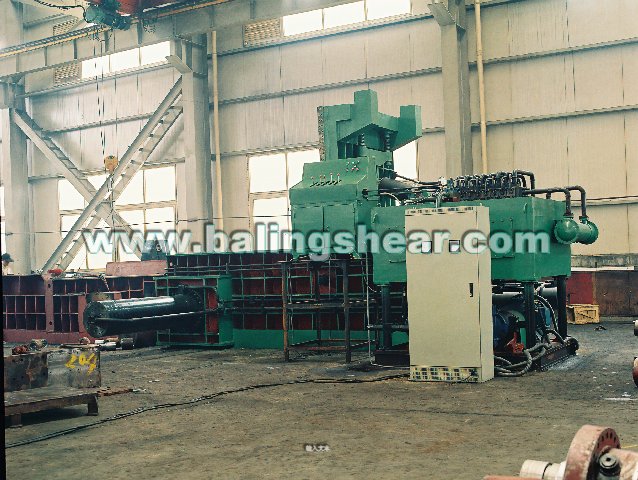

Hydraulic Baling Press, Metal Scrap Baler (Bailer)

Why Choose Scrap Baler?

Y81 series hydraulic scrap metal baling presses are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to compact scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in the shapes of cuboids, cylinders & octagons. Our group company produce and export large quantity of balers to overseas customers, and help them achieve more benefits from compacting their scraps. By using scrap metal baler, scrap yard owners can load more scraps into truck or containers, so that they can save more cost in transportation; steel mill owners can feed more scraps into their furnace with less time, so that they can reduce furnace loss and get more turn-back from melting scraps.

Our Balers’ Features:

1/ Control model：Manual valve (or PLC control)

2/ Discharging method: Turn-out discharging from press box

3/ Baler Press force：lid, side, main pressure cylinders

4/ Bale shape：cuboid; octagon

5/ Wear plate：carburizing and hardening, better anti-wearing; A3 Steel, linked with bolts, can replace each of wear plates; High pressure chamber (8 PCs)：can choose #45 steel, Mn65; Low pressure chamber：can choose #45 steel
6/ Normal spare parts：oil seals, tools; other spares：high-pressure hose；filter core；electrical elements；oil caps

Technical Parameters:

Model	Main Cylinder Force	Load Box Size (mm)	Bale Size (mm)	Bale Weight (kg)	Capacity (Ton/hr)	Power (kW)
Y81F-315A	315Ton	2000×1750×1000	500×500	300-500	5.0-8.0	2×45(-4)
Y81F-315B	315Ton	2000×1750×1200	600×600	300-500	5.0-8.0	2×45(-4)
Y81F-315E	315Ton	2500×2000×1200	600×600/500x500	400-700	6.0-10.0	2×45(-4)
Y81F-315G	315Ton	3000x2500x1200	600×600/500x500	450-750	6.0-10.0	2×45(-4)
Y81F-315F	315Ton	3500x3000x1300	600×600/700x700	500-800	7.0-11.0	2×45(-4)
Y81F-400C	400Ton	3000×2000×1300	600x600	500-800	7.0-11.0	2×45(-4)
Y81F-400E	400Ton	3500x3000x1300	600×600/700x700	600-900	8.0-12.0	3×45(-4)

Optional configuration:（Customers' choice）

A. Oil Cooler (Water Cooler, or Forced Air cooler)
B. Oil Heater (Used in cold areas)
C. Cutting blade (16-25mm), and teeth in two sides
D. "NOK" sealing for cylinder
E. Magnetic oil filter
F. Diesel engine or generator
G. Pre-feeding loading hopper
H. One-piece Structure(Easy for loading container and free of installation)
I. CE Certification(GOST Certification)

J. On-site installation supervision

More details pls contact us at HAYWOOD.CHUNG@GMAIL.COM
