Product Description

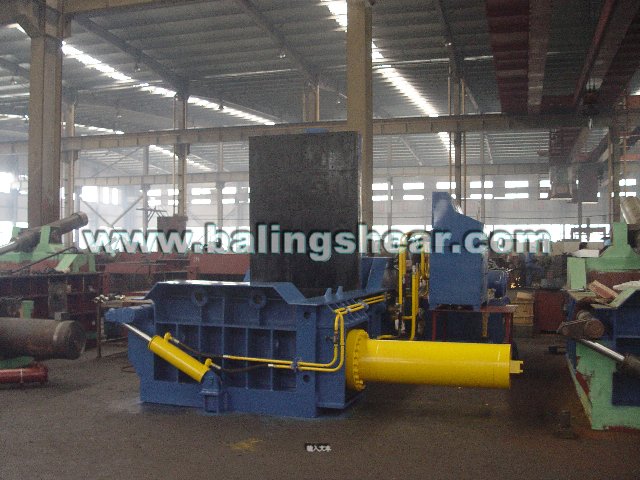

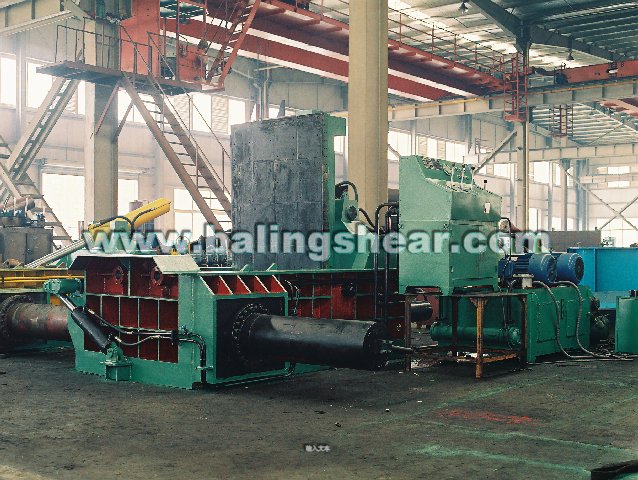

Hydraulic Baling Press, Metal Scrap Baler (Bailer)

Why Choose Scrap Baler?

Y81 series hydraulic scrap metal baling presses are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to compact scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in the shapes of cuboids, cylinders & octagons. Our group company produce and export large quantity of balers to overseas customers, and help them achieve more benefits from compacting their scraps. By using scrap metal baler, scrap yard owners can load more scraps into truck or containers, so that they can save more cost in transportation; steel mill owners can feed more scraps into their furnace with less time, so that they can reduce furnace loss and get more turn-back from melting scraps.


Our Balers’ Features:

1/ Control modelManual valve (or PLC control)

2/ Discharging method: Turn-out discharging from press box

3/ Baler Press forcelid, side, main pressure cylinders

4/ Bale shapecuboid; octagon

5/ Wear platecarburizing and hardening, better anti-wearing; A3 Steel, linked with bolts, can replace each of wear plates; High pressure chamber (8 PCs)can choose #45 steel, Mn65; Low pressure chambercan choose #45 steel
6/ Normal spare partsoil seals, tools; other spareshigh-pressure hosefilter coreelectrical elementsoil caps



Technical Parameters:

Model

Main Cylinder

Force

Load Box Size

(mm)

Bale Size

(mm)

Bale Weight

(kg)

Capacity

(Ton/hr)

Power

(kW)

YE81F-160A

160Ton

1600×1000×800

350×350/400×400

100-180

2.0-3.5

22

YE81F-160B

160Ton

1600×1200×800

400×400

100-200

2.0-4.0

22+15

YE81F-200B

200Ton

1600×1200×800

400x400

120-220

2.5-4.5

22+15

YE81F-200F

200Ton

1800×1400×900

400×400/500x500

180-350

3.5-6.0

2×22

YR81F-250BS

250Ton

1800×1400×800

450×450

250-450

4.5-7.0

2×22

YR81F-250BSL

250Ton

2000×1400×800

450×450

250-450

4.5-7.0

2×22

YE81F-250B

250Ton

2000×1400×900

500×500

250-450

4.5-7.0

2×22

Y81F-250F

250Ton

2000×1750×1000

2000x1850x1000

500×500

250-450

4.5-7.0

2×30

Y81F-250G

250Ton

2000×1750×1200

2000x1850x1200

600×600

250-450

4.5-7.0

2×30

Y81F-250S

250Ton

2500x2000x1000

500×500/600x600

250-450

4.5-7.0

2×30

Y81F-250P

250Ton

2500x2000x1200

600x600

250-450

4.5-7.0

2×30



Optional configuration:Customers' choice

A. Oil Cooler (Water Cooler, or Forced Air cooler)
B. Oil Heater (Used in cold areas)
C. Cutting blade (16-25mm), and teeth in two sides
D. "NOK" sealing for cylinder
E. Magnetic oil filter
F. Diesel engine or generator
G. Pre-feeding loading hopper
H. One-piece Structure(Easy for loading container and free of installation)
I. CE Certification(GOST Certification)
J. On-site installation supervision



More details pls contact us at HAYWOOD.CHUNG@GMAIL.COM
