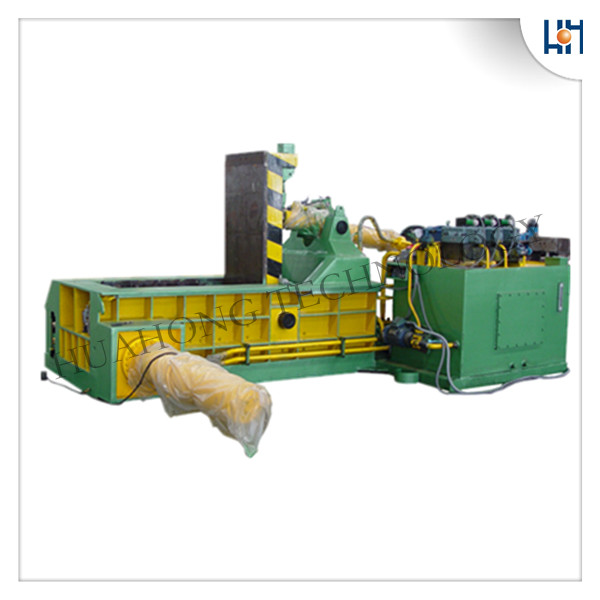

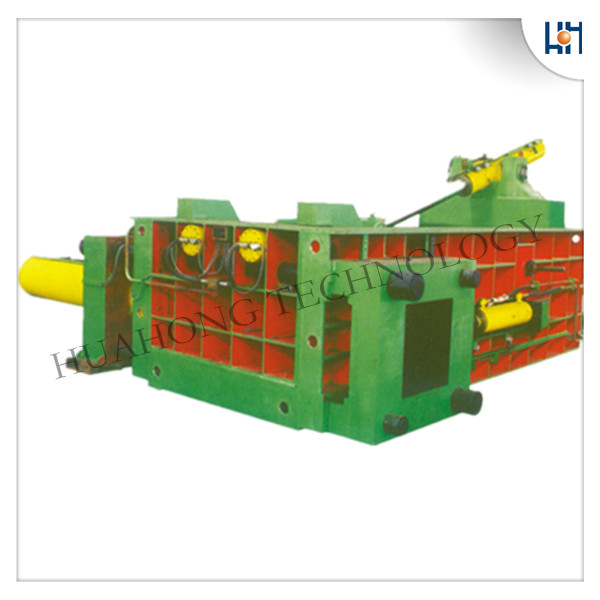

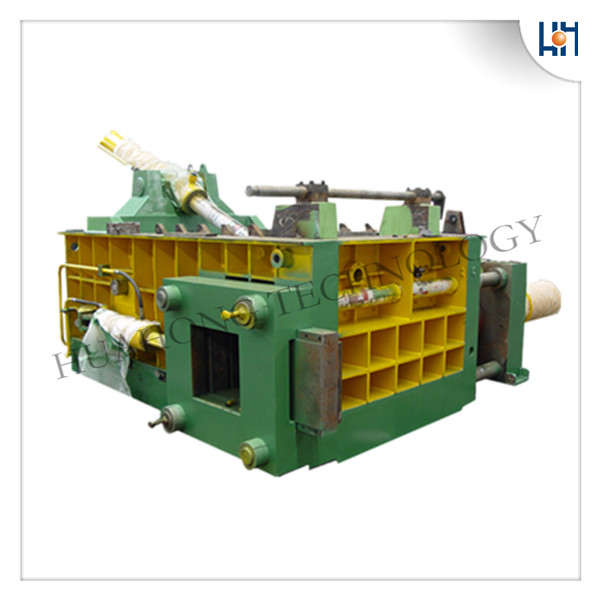

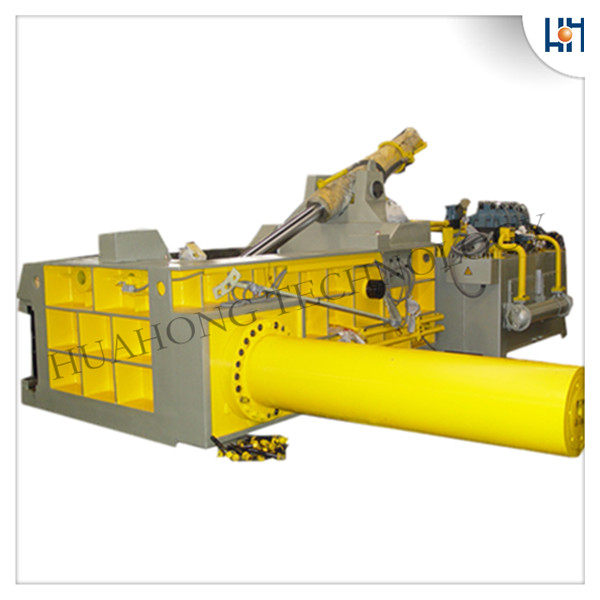

Hydraulic Baling Press, Metal Scrap Baler (Bailer)

Why Choose Scrap Baler?

Y81 series hydraulic scrap metal baling presses are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to compact scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in the shapes of cuboids, cylinders & octagons. Our group company produce and export large quantity of balers to overseas customers, and help them achieve more benefits from compacting their scraps. By using scrap metal baler, scrap yard owners can load more scraps into truck or containers, so that they can save more cost in transportation; steel mill owners can feed more scraps into their furnace with less time, so that they can reduce furnace loss and get more turn-back from melting scraps.

Our Balers’ Features:

1/ Control model：Manual valve (or PLC control)

2/ Discharging method: Side-pushing-out discharging from press box

3/ Baler Press force：lid, side, main pressure cylinders

4/ Bale shape：cuboid

5/ Wear plate：carburizing and hardening, better anti-wearing; A3 Steel, linked with bolts, can replace each of wear plates; High pressure chamber (8 PCs)：can choose #45 steel, Mn65; Low pressure chamber：can choose #45 steel
6/ Normal spare parts：oil seals, tools; other spares：high-pressure hose；filter core；electrical elements；oil caps

Technical Parameters:

Model	Main Cylinder Force	Load Box Size (mm)	Bale Size (mm)	Bale Weight (kg)	Capacity (Ton/hr)	Power (kW)
YE81T-160A	160Ton	1600×1000×800	350x350 400×400	100-180	2.0-3.5	22
YE81T-160B	160Ton	1600×1200×800	400×400	100-200	2.0-4.0	22+15/45
YE81T-200B	200Ton	1600×1200×800	400x400	120-220	2.5-4.5	22+15/45
YE81T-200C	200Ton	1800×1400×900 1800×1400×1000	500x500 400x400/ 450×450	180-350	3.5-6.0	2x22
YE81T-250B	250Ton	2000×1400×900 2000×1400×1000	500x500 500x500/ 400×400	200-450	4.0-7.0	2x22 2×30
YE81T-250C	250Ton	2000×1400×1000 2000×1400×1200	500x500 450×450/ 500×500	250-450	4.5-7.0	2×30
Y81T-250D	250Ton	2000×1750×1200	500×500	250-450	4.5-7.0	2×30
