Product Description

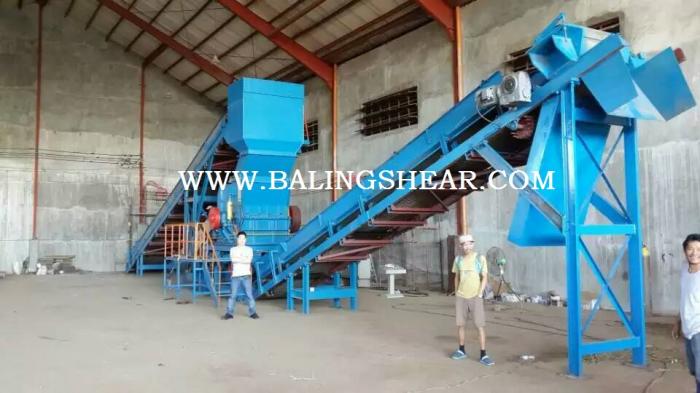

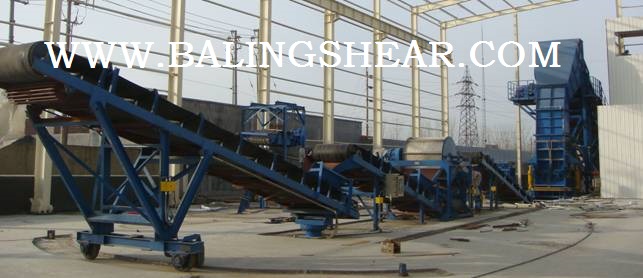

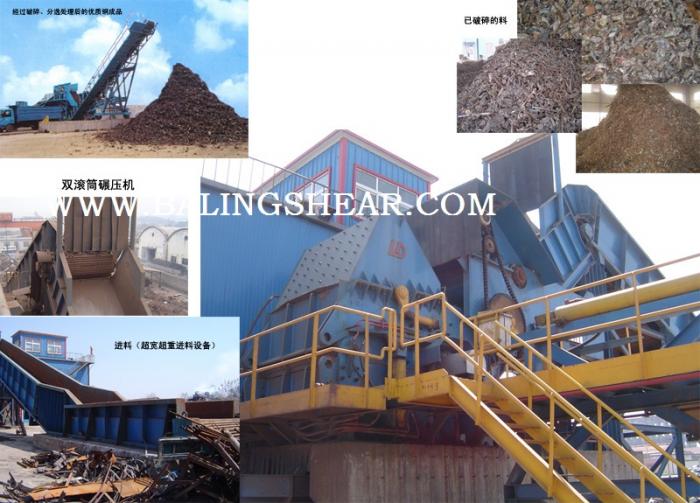

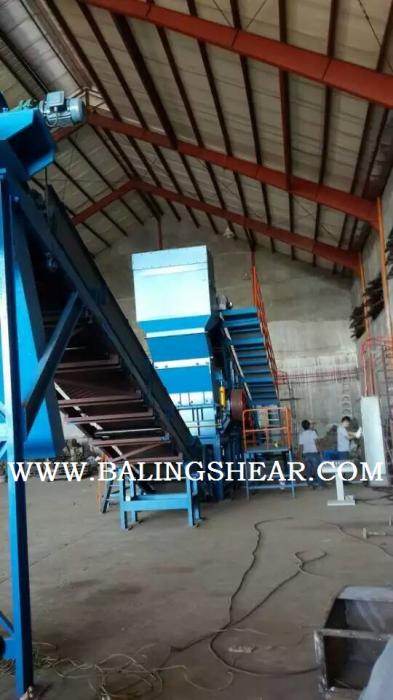

Scrap Metal Shredding line - Shredder
Why Choose Scrap Shredder?
The shredding
line can be used to shred waste car body (without engine, gearbox, tyres),
tinplate, household appliances, bicycle and similar urban garbage, empty can,
other metal scraps bales (density not thick than 0.65ton/m3). The shredder can
shred and remove coatings, increase density, and prevent any explosion when
putting scrap into oven, in order to improve smelting rate.
Our Shredders’ Features:
1/ Waste car body (remove engine, gear, tyre), Shredder with power below
500kw, need to separate car body into a bale within 600x
2/ Tinplate (pop-top can)
3/ White domestic goods (remove motor, compressor, shaft)
4/ Bicycle, track’s guard railing and other similar daily metal waste
5/ Empty can (remove paint)
6/ other metal scraps (density not thick than 0.65ton/m3)
7/ Steel plate and structure with thickness not beyond
Technical Parameters:
|
NO |
Model |
Main Shredder |
Feeder Width (mm) |
Power (kW/HP) |
Capacity (t/h) |
|
1 |
PSX-75 |
PSJ 3050 |
1000 |
75KW |
0.5-1.5 |
|
2 |
PSX-132 |
PSJ 3050 |
1000 |
132KW |
1-2.5 |
|
3 |
PSX-150 |
PSJ 4050 |
1000 |
150KW |
1.5-4.5 |
|
4 |
PSX-200 |
PSJ 4050 |
1000 |
200KW |
3-5.5 |
|
5 |
PSX-315 |
PSJ5055 |
1200 |
315(450) |
5-8 |
|
6 |
PSX-450 |
PSJ5055 |
1200 |
450(600) |
6-10 |
|
7 |
PSX-500 |
PSJ5055 |
1200 |
500(700) |
8-12 |
|
8 |
PSX-750 |
PSJ6885 |
2200 |
750(1000) |
15-20 |
|
9 |
PSX-900 |
PSJ6885 |
2200 |
900(1200) |
20-30 |
|
10 |
PSX-1200 |
PSJ6885 |
2200 |
1200(1600) |
25-40 |
|
11 |
PSX-1500 |
PSJ80104 |
2500 |
1500(2000) |
40-50 |
|
12 |
PSX-2000 |
PSJ80104 |
2500 |
2000(2700) |
50-60 |
|
13 |
PSX-2250 |
PSJ80104 |
2500 |
2250(3000) |
60-80 |
|
14 |
PSX-3000 |
PSJ98114 |
2500 |
3000(4000) |
80-100 |
|
15 |
PSX-4500 |
PSJ98114 |
2500 |
4500(6000) |
100-160 |
More details pls contact us at HAYWOOD.CHUNG@GMAIL.COM
