Product Description

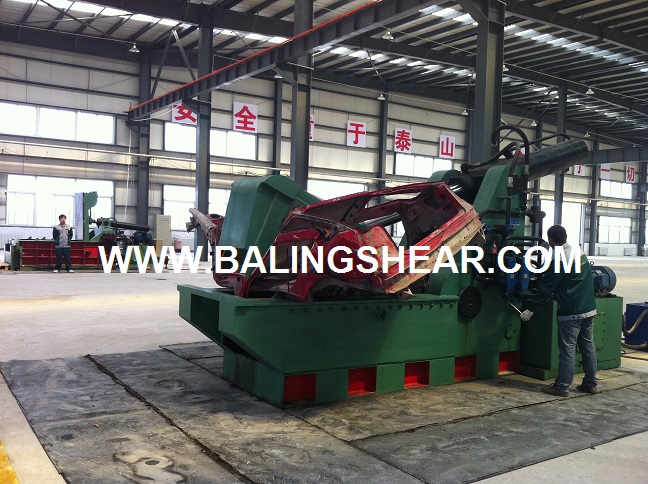

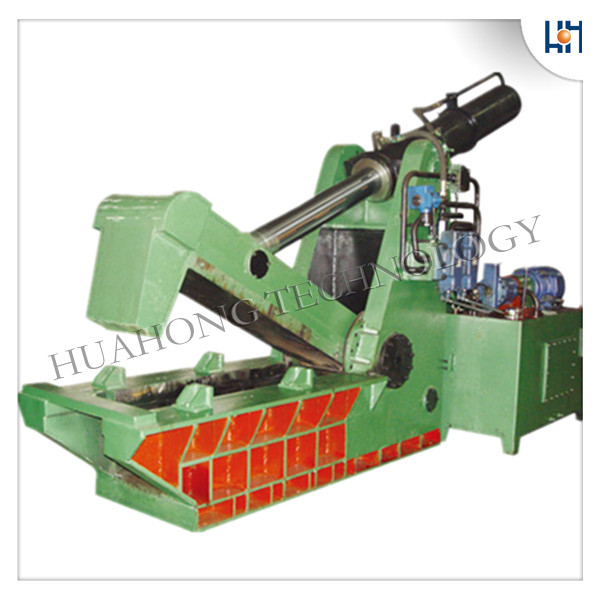

Hydraulic Shear Baler

Why Choose Scrap Shear Baler?

Q43II series hydraulic scrap metal shear baler are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to compact scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in the shapes of cuboids, cylinders & octagons. Shear baler has 2 sides big cutting blades, with max cutting range of 45mm diameters, it can be used for automobile car body cutting usage.


Our Balers’ Features:

1/ Control modelManual valve (or PLC control)

2/ Discharging method: Front-pushing-out discharging from press box

3/ Baler Press forcelid, main pressure cylinders

4/ Bale shapecuboid

5/ Wear platecarburizing and hardening, better anti-wearing; A3 Steel, linked with bolts, can replace each of wear plates; High pressure chamber (8 PCs)can choose #45 steel, Mn65; Low pressure chambercan choose #45 steel
6/ Normal spare partsoil seals, tools; other spareshigh-pressure hosefilter coreelectrical elementsoil caps



Technical Parameters:

Model

Main Cylinder

Force

Load Box Size

(mm)

Bale Size

(mm)

Blade Length

(mm)

Power

(kW)

Q43II-2000A

200Ton

1420×450×475

450×375

1420

30

Q43II-2000B

200Ton

2020×600×400

600×300

2020

37



Optional configuration:Customers' choice

A. Oil Cooler (Water Cooler, or Forced Air cooler)
B. Oil Heater (Used in cold areas)
C. Cutting blade (20-30mm),
D. "NOK" sealing for cylinder
E. Magnetic oil filter
F. Diesel engine or generator
G. CE Certification(GOST Certification)
H. On-site installation supervision





More details pls contact us at HAYWOOD.CHUNG@GMAIL.COM
