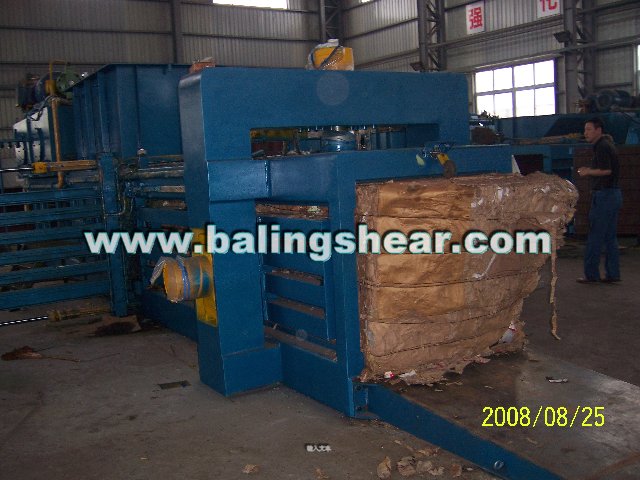

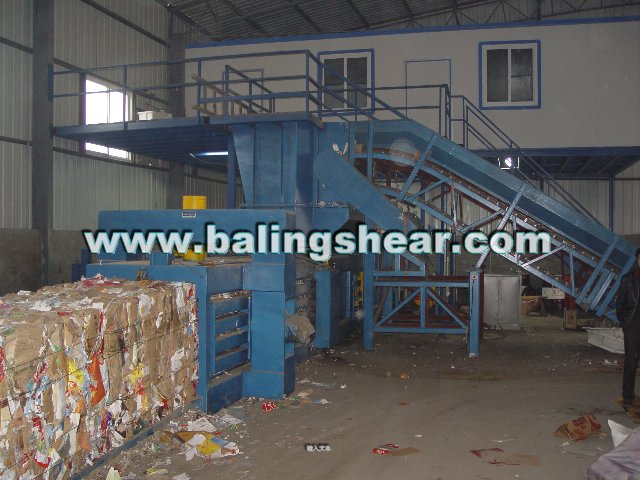

Fully Automatic Tying Horizontal Baler

Why Choose Horizontal Baler?

HPA series of horizontal balers are applied for baling & automatic strapping of paper, cardboard (carton), newspaper, magazine, straw, PET bottle, plastic film & crate, etc.

Our Balers’ Features:

1. Mitubishi PLC Control, simple and reliable.
2. Touch screen and visible window
3. Mechanical safety release for platen
4. Long lasting wear pads on platen

5. Error diagnostics

6. Forward and full ejection baler

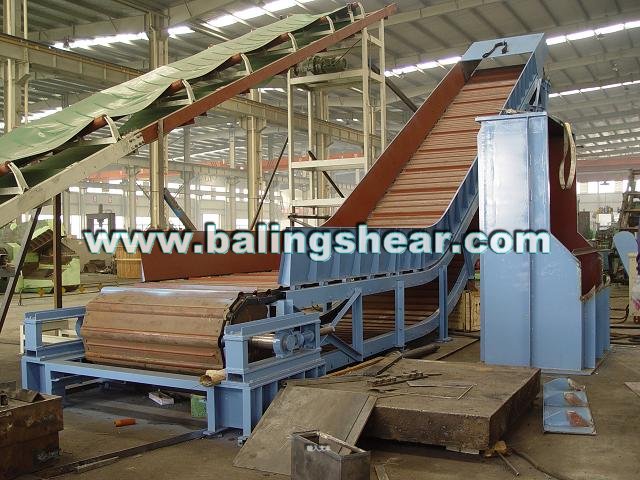

7. Conveyor controls with starter

8. Serrated and stepped knives

9. Photoelectric switch to monitor feeding process

10. Automatic belting to speed up production

Technical Parameters:

Model	Press Force	Hopper Size (L×W) (mm)	Bale Size (W×H) (mm)	Bale Weight – Carton (kg)	Production - Carton (tons/hr)	Power (kW)
HPA80C	80Ton	1450×1100	1100×720	400-530	3.5-4.8	45+7.5
HPA100A	100Ton	1600×1000	1000×1100	670-1050	6.0-8.5	55+7.5
HPA125A	125Ton	2200×1100	1100x1100	720-1150	7.2-10.2	74+7.5
HPA125B	125Ton	2200x1100	1100×1250	790-1250	7.9-11.2	74+7.5
HPA150A	150Ton	2200x1100	1100×1100	760-1280	10.6-15.0	90+7.5
HPA150B	150Ton	2200x1100	1100×1250	830-1400	11.0-16.0	90+7.5
HPA180	180Ton	2200x1100	1100×1100	810-1350	11.3-16.2	180+7.5

Optional configuration:（Customers' choice）

A. Oil Cooler (Water Cooler, or Forced Air cooler)

B. Oil Heater (Used in cold areas)

C. "NOK" sealing for cylinder

D. CE Certification(GOST Certification)

E. On-site installation supervision

More details pls contact us at HAYWOOD.CHUNG@GMAIL.COM
